Biological Microscope

Products Details

Specification A12.1503-A A12.1503-B
Optical System Achromatic , Mechanical Tube Length 160mm

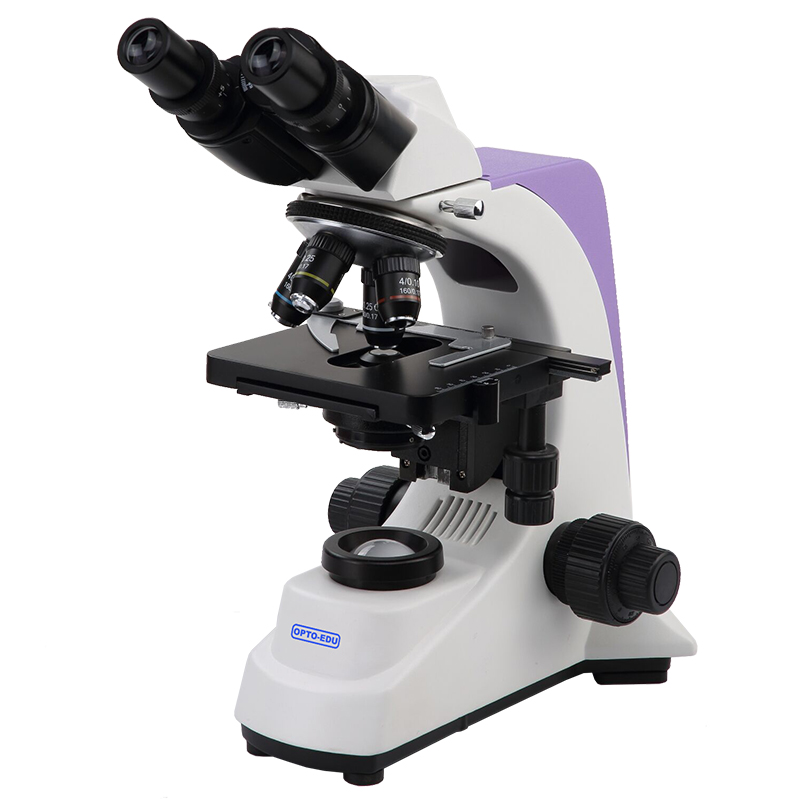

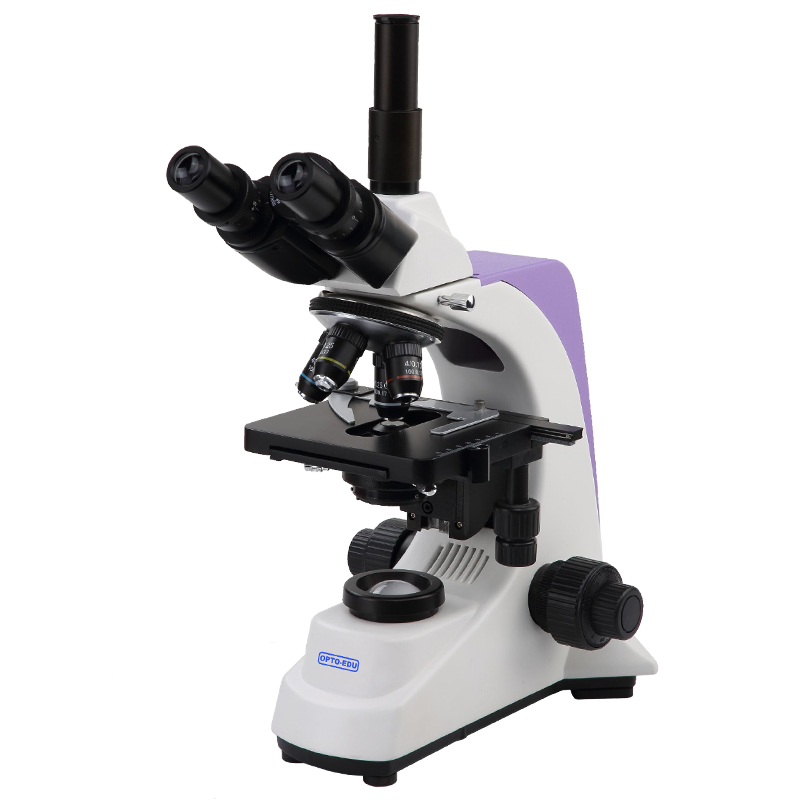

Head Seidentopf Binocular Head, Seidentopf Trinocular Head,
30° Inclined, 360° Rotatable,  30° Inthined, 360° Rotatable,
Interpupillary Distance 48-75mm Interpupillary Distance 48-75mm
Eyepiece WF10x/18mm
Objective Achromatic Objectives 4x,10x,40x(S), 100x(S,O)
Nosepiece Outward Quadruple Nosepiece
Focus System Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 36mm
Working Stage Double Layer Mechanical Stage 142x132mm Moving Range75x50mm, Low Position Right Hand Controls, X-Y Coaxial Control Knob
Condenser Abbe N.A.1.25  With Iris Diaphragm
Light Source Transmit Light Source 3W LED Or 6V20W Halogen Lamp
Adapter -- Digital Eyepiece Adapter
A12.1503 Laboratory Microscope Optional Accessories Item No.
Eyepiece WF16x A51.1502-16
Adapter 0.5x, C-Mount A55.1503-0.5
1.0x, C-Mount A55.1503-1.0
