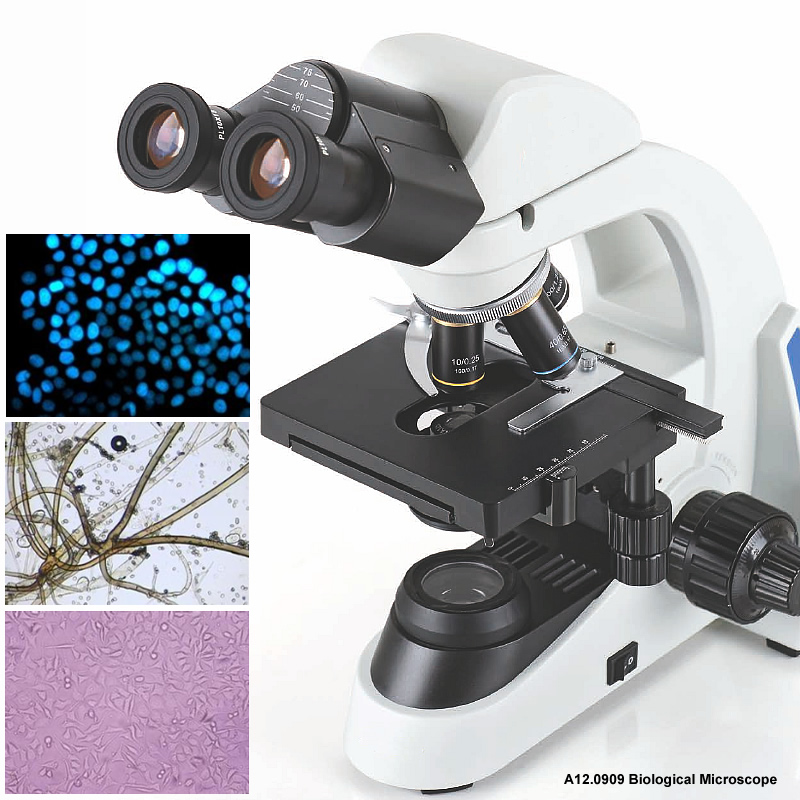

A12.0909-A1 Biological Microscope, Monocular

  • Binocular & Trinocular Head Interpupillary Distance 50~75mm
  • Low Position Designed, Coaxial Coarse & Fine Focusing
  • Double Layer Mechanical Stage, Size 132*140mm, Moving Range 50*76mm
  • Abbe N.A.1.25, With Iris Diaphragm, Fixed But Centeradjustable Avoid Missing
  • 3W LED High Brightness For Energy Efficiency & Enviromental Protection

Products Details

未标题-1_01

未标题-1_03

未标题-1_04

未标题-1_05

未标题-1_06

A12.0909 Biological Microscope A B C A1 B1 C1
Head Monocular Head, 30° Inclined,
Binocular Head, 30° Inclined, Diopter Adjustable +/-5°, Interpupillary Distance 50~75mm
Trinocular Head, 30° Inclined, Diopter Adjustable +/-5°,Interpupillary Distance 50~75mm, Light Split Ratio 80:20
Objective Achromatic 4x,10x,40x(S),100x(O,S)
Plan 4x,10x,40x(S),100x(O,S)
Eyepiece WF10x/18mm
Nosepiece Backward, Quadruple Nosepiece
Working Stage Double Layer Mechanical Stage, Size 132*140mm, Moving Range 50*76mm, Precision 0.1mm
Condenser Abbe N.A.1.25, With Iris Diaphragm, Fixed But Center adjustable
Focusing Low Position Designed, Coaxial Coarse & Fine Focusing, Coarse Focusing Range 25mm, Fine Focusing Scale 0.002mm, With Tension Adjustment, With Upper Safety Stop
Light Source 3W LED High Brightness
Power External Wide Voltage AC Adapter, 100V-240V_AC50/60Hz Input, DC6V 2A Output.
External Wide Voltage AC Adapter, 100V-240V_AC50/60Hz Input, DC7.5V 2A Output. (Optional)
Internal Switch 100V-240V_AC50/60Hz (Optional)
Internal 4 Pieces Rechargeable Batteries, External Wide Voltage Battery Charger, 100V-240V_AC50/60Hz Input, DC6V 1A Output. (Optional)
A12.0909 Biological Microscope Optional Accessories
Eyepiece PL10x/18mm with Pointer, High-Eyepiont E51.0906-1018P
PL10x/18mm with Reticle, High Eyepoint E51.0905-1018PR
Adapter C-Mount 1.0x A55.0926-10
C-Mount 0.35x A55.0926-35
C-Mount 0.50x A55.0926-50
C-Mount 0.67x A55.0926-67
