Items	A13.1013 BF/DF DIC Metallurgical Microscope	A		B
Optical System	Infinity Optical System, Bright Field/Dark Field, DIC, Polarizing

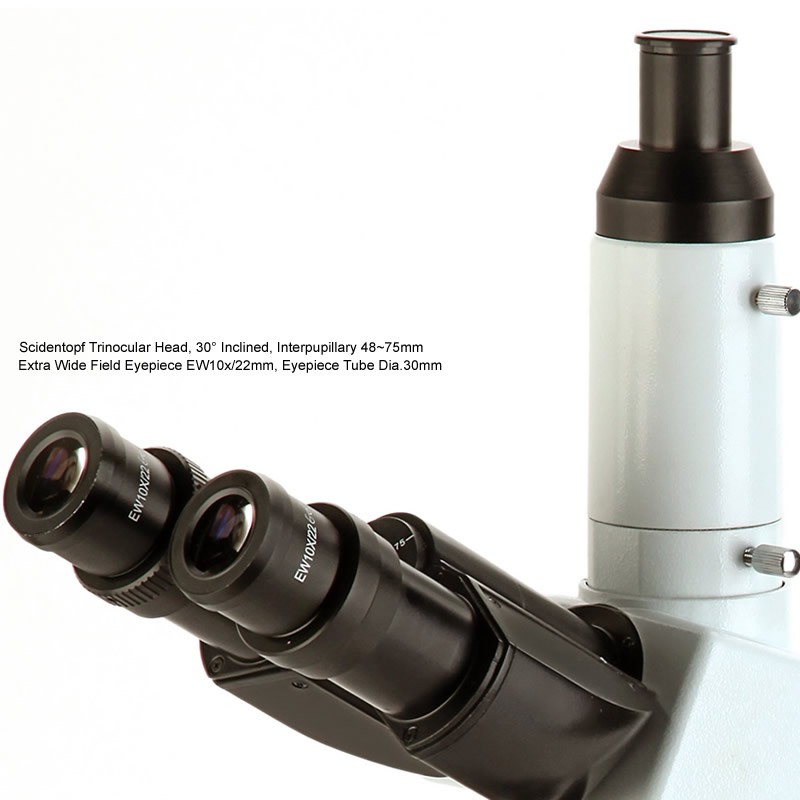

Head	Seidentopf Trinocular Head Inclined at 30°, Interpupillary 48-75mm
Eyepiece	Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm
Nosepiece	Backward  Quintuple  Nosepiece
Objective	Infinity Plan Achromatic Objectives 5x/ 0.12/ ∞/ - (BF/DF),W.D.12mm
	Infinity Plan Achromatic Objectives 10x/ 0.25/ ∞/ - (BF/DF),W.D.10mm
	Infinity Plan Achromatic Objectives 20x/ 0.4/ ∞/0 (BF/DF),W.D.4.3mm
	Infinity Plan Achromatic Objectives 50x/ 0.75/ ∞/0 (BF/DF),W.D.0.32mm
	Infinity Plan Achromatic Objectives100x/0.80/∞/0 (BF/DF),W.D.2mm
	Infinity Plan Achromatic Objectives 40x/0.65/∞/0.17,W.D.0.54mm			o
	Infinity Plan Achromatic Objectives 100x/1.25/∞/0.17,W.D.0.13mm			o
Focusing	Coaxial Coarse & Fine Adjustment, Fine Focusing Precision <1um, With Safty Stop, With Tension Adjustment
Working Stage	Maximum Sample Height 30mmDouble Layer Mechanical Stage 186*138mm, Moving Range 74*50mm, Including: --Specimen Preparation Plate --Slide Glass			o
	Maximum Sample Height 50mmNon-Porous Double Layer Mechanical Stage 186*138mm, Moving Range 74*50mm	o
Reflect Illumination	24V 100W Halogen Light, Brightness AdjustableKohler Illumination With Aspherical Condenser Polarizer & Analyzer, Intergrate Board For Polarizer & Analyzer Blue, Green, Yellow Filter, Gound Glass
Transmit Illumination	Swing-Out Condenser N.A.0.9/0.2524V 100W Halogen Light With Aspherical Condenser Blue Filter			o





A13.1013 BF/DF DIC Metallurgical Microscope Optional Accessories
Objective	Infinity Plan Achromatic Objectives 40x/0.6/∞/0 (BF/DF),W.D.2.9mm	A5M.1036-40
DIC	20x, 100x DIC Slide	A5M.1040
Polarizing	Polarizer & Analyzer, Intergrate Board For Polarizer & Analyzer |For Reflect Illumination	A5P.1002
Filter	Netural Filter ND25	A5F.1011-25
	Netural Filter ND6	A5F.1011-6
Adaptor	Photo Adapter, For Nikon or Canon SLR Camera	A55.1001
	C-Mount 1.0x	A55.1002-10
	C-Mount 0.5x	A55.1002-05
Other	Specimen Presser	A5M.1010
