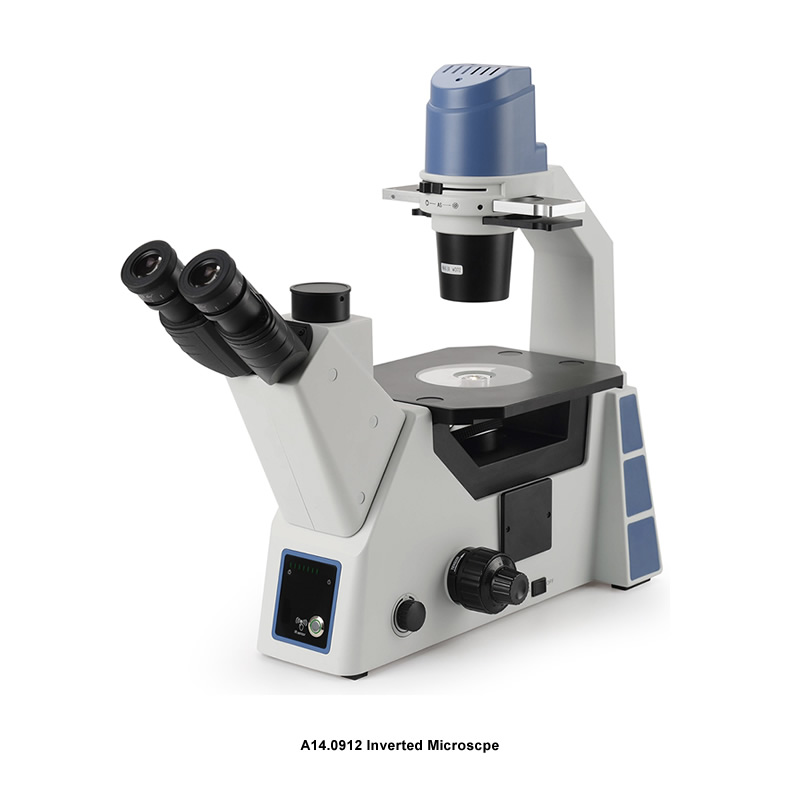

A14.0912 Inverted Phase Contrast Microscope

  • Infinity Color Corrected Optical System + Positive Phase Contrast
  • Plan WF10x/22mm, Diopter Adjustable, High Eye-point
  • Infinity LWD Plan Achromatic Objective 4x/10x/40x & Phase Contrast 20x
  • Phase Contrast Filter & Centering Telescope
  • 5W LED With Light Indicator, With ECO Auto On/Off Function

Products Details

A14.0912 Inverted Microscope
Optical SystemInfinity Color Corrrected Optical System
HeadTrinocular Head, Split Ratio 50:50, 45° Inclined, 360° Rotatable, IPD 50-75mm,
EyepiecePlan WF10x/22mm, Diopter Adjustable, High Eye-point,
ObjectiveInfinity LWD Plan Achromatic Objective 4x/10x/40x
Infinity LWD Positive Phase Contrast Objective 20x
Focus SystemCoaxial Focus System With Tension Adjustment, Coarse Range: 9mm, Fine Precision 0.002mm
NosepieceQuadruple Nosepiece
CondenserLWD N.A. 0.30, W.D. 72mm, Dismountable, Phase Contrast Slide
StageRight Hand Controls, Low Positioned, Fixed Mechanical Stage, Size 215x250mm, Dia.35 Petri Dish Holder, Metal Plate And Glass Plate
Light Source5W LED, With Light Indicator, Brightness Adjustable
ECO Infared Induction System (Auto on/off)
External Wide Voltage Transformer, 100V-240V Input, 12V5A Output,
Phase ContrastCentering Telescope Dia.30mm
IF550 Contrast Green Filter Dia.45mm
FilterLBD Color Temperature Change Filter Dia.45mm
Optional AccessoriesItem No.
EyepiecePlan WF15x/16mm, Diopter Adjustable, High Eye-point
StageMechanical Mobile Ruler, Moving Range120(X)*78(Y)mm Stage Extension PlateA54.0945-03
Adapter035x C-Mount
0.5x C-Mount
0.65x C-Mount
1.0x C-Mount
