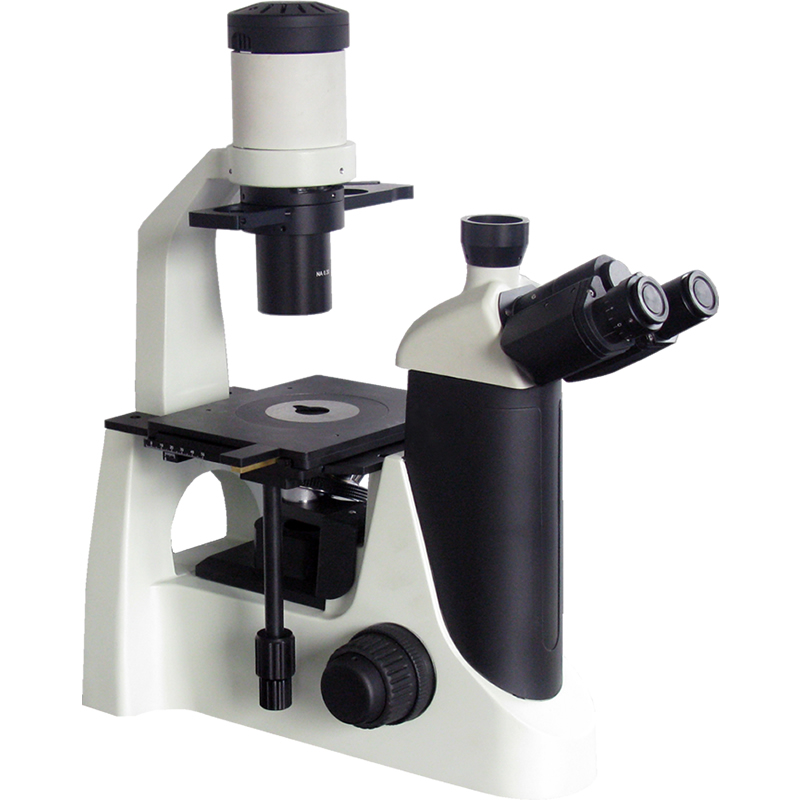

| Items | A14.2702 Inverted Microscope |
| Optical System | Ucis Infinity Independent Achromatic Optical System |
| Frame | One-Piece Construction From Arm To Base |
| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupilary Distance 52-75Mm, Diopter Adjustable |
| Eyepiece | Plan WF10x/20mm, High Eyepoint Up To 21mm, |
| Centering Attachment | Centering Telescope |
| Objective | Infinity LWD Plan Achromatic Objective 10x |
| Infinity LWD Plan Achromatic Objective 20x |
| Infinity LWD Plan Achromatic Objective 40x |
| Infinity LWD Plan Positive Phase Contrast Objective 20x |
| Focus System | Coaxial Coarse And Fine Focus Mechanism With Markings, Fine Focus Sensitivity 1mm, Coarse Range 14mm |
| Nosepiece | Quintuple, Reversed Type With Positive Click Stops |
| Stage | Low Position, Mechanical Stage, Size 180X150mm, Moving Range 80X50mm. |
| Drop Specimen Holder Dia.110mm |
| Specimen Holder Dia. 54mm |
| Light Source | Abbe Condenser N.A. 0.30 With Iris Diaphragm, With Phase Contrast Slider, Long Work Distance 72mm |
| 6V30W Halogen Lamp House |
| Electrical Parts For 6V30W Halogen Lamp |
| 6V30W Halogen Bulb(Osram) |
| 250V/3.15A Φ5x20 Fuse |
| Power Supply 110-240V 50/60Hz |
| Blue Filter (Φ34) |
| Green Filter (Φ34) |
| Yellow Filter (Φ34) |
| Phase Contrast | Phase Contrast Slider (For 10X/20X/40X Phase Contrast And Brightfield Observation) |
| Adapter | 1.0x C-Mount |
| Other | Allen Screw Driver 2mm |
| Dust Cover |
| Power Cord |
| Optional Accessories | Item No. |
| Head | Seidentopf Binocular Head, 30° Inclined, Interpupillary Distance 52-75mm, Diopter Adjustable | A53.2702-3 |
| Seidentopf Binocular Head, 30° Inclined, Interpupillary Distance 52-75mm, Diopter Adjustable (For FOV 22mm) | A53.2702-2B |
| Seidentopf Trinocular Head, 30° Inclined, Interpupillary Distance 52-75mm, Diopter Adjustable (For FOV 22mm) | A53.2704-2A |
| Eyepiece | WF10x/18mm, Plan, Reticule Eyepiece, High Eyepoint Up To 21mm Diopter Adjustable | A51.2703-10 |
| Eyepiece 16x/13mm, Plan | A51.2701-1613A |
| WF10x/22mm,Plan, High Eyepoint | A51.2701-10C |
| WF10X/20mm, Reticule Eyepiece, High Eye-point, Diopter Adjustable | A51.2703-10A |
| Objective | Infinity LWD Plan Achromatic Objective 4x | A5M.2730-4C |
| IInfinity LWD Plan Achromatic Objective 60x | A5M.2730-60B |
| Infinity LWD plan phase-contrast Objective 10x (positive) | A5C.2735-10PB |
| Infinity LWD plan phase-contrast Objective 40x (positive)+slider | A5C.2735-40PB |
| Infinity LWD Plan Phase-Contrast Objective 10x (Negative) | A5C.2735-10NB |
| Infinity LWD Plan Phase-Contrast Objective 20x (Negative) | A5C.2735-20NB |
| Infinity LWD Plan Phase-Contrast Objective 40x (Negative)+slider | A5C.2735-40NB |
| Stage | Fixed Stage, Size 240x180mm | A54.2707-4 |
| Fluorescence Attachment | 100W Mercury Lamp House | A5F.2712 |
| 100W Power Supply Unit | A5F.2713 |
| 100W Mercury Lamp | A5F.2716-H |
| 100W Mercury Lamp (Osram) | A5F.2716-I |
| Excitation Filter B | A5F.2711-CAB |
| Excitation Filter G | A5F.2711-CAG |
| Excitation Filter UV | A5F.2711-CAUV |
| Excitation Filter V | A5F.2711-CAV |
| Adapter | 1.0x C-Mount | A55.2701-10 |
| 0.5x C-Mount | A55.2701-05 |
| 0.25x C-Mount (suitable for 1/3" CCD) | A55.2701-25 |
| Digital Camera Adapter, (Need To Know Camera Model Number) | A55.2702-2 |
