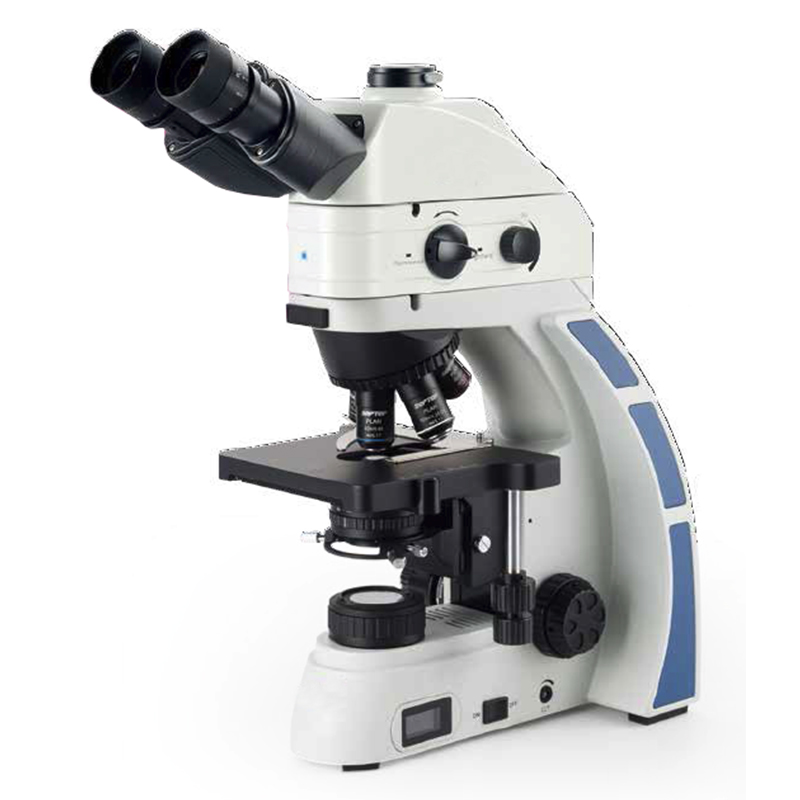

A16.0911 LED Fluorescent Microscope, B4 For Phthisis Checking
Optical System	Infinity Chromatic Aberration Correction System
Head	Trinocular, Light Split 8:2, 30° Inclined, 360° Rotatable, Interpupillary Distance 50~75mm
Eyepiece	PL10x/20mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree
Nosepiece	5 Holes Backward Nosepiece
Objective	Infinity Plan Achromatic 10x/0.25, 20x/0.50, 40x/0.65, 100x/1.25
Working Stage	Rackless Double Layer Mechanical Stage 150*162mm, Moving Range 76*50mm, Precision 0.1mm
Focusing	Low Position Coaxial Coarse & Fine Focusing Knob, with Safty Limitation and Tension Adjustment Ring. Coarse Range 25mm, Fine Precision 0.002mm
Condenser	Kohler N.A.1.25, With Socket For Phase Contrast Slide
Light Source	3W LED, Intensity Adjustable, With LCD Information Screen, Showing Adjustable Color Temperature (3000K-5600K), With Brightness Memory Function
LED Fluorescent	B4 Tuberculosis Special LED Fluorescent Intermediate Modular, With Brightness Adjust Knob, BF/FL Switch Knob, LED Center Wavelength 455nm, Fluorescent Filter Band B4 Speically Used For Tuberculosis Inspection
Power	90~240V Wide Range Power Supply
A16.0911 LED Fluorescence Microscope Optional Accessories
Head	Binocular Head 30° Inclined, 360° Rotatable, Interpupillary Distance Range 50~75mm	A53.0907-B30R
Eyepiece	PL10x/22mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree	A51.0904-N1022T
Infinity Plan Achromatic Objective	2x/0.06, WD=5.03mm (Field Complement Is Needed)	A52.0906-2
	4x/0.10, WD=11.9mm	A52.0906-4
	10x/0.25, WD=12.1mm	A52.0906-10
	20x/0.40, WD=1.5mm	A52.0906-20
	40x/0.65, WD=0.36mm	A52.0906-40
	60x/0.85, WD=0.30mm	A52.0906-60
	100x/1.25, WD=0.18mm	A52.0906-100
Infinity Plan Semi-Apochromatic Fluorescence Objectives	4x/0.13 W.D.=16.43mm	A5F.0931-4
	10x/0.30 W.D=8.13mm	A5F.0931-10
	20x/0.50 W.D=2.03mm	A5F.0931-20
	40x/0.75 W.D=0.74mm	A5F.0931-40
	100x/1.28 W.D=0.18mm	A5F.0931-100
Fluorescent	B1 LED Fluorescent Intermediate Modular, With Brightness Adjust Knob, BF/FL Switch Knob, LED Center Wavelength 470nm, Fluorescent Filter Band B1	A5F.0912-G1
	G1 LED Fluorescent Intermediate Modular, With Brightness Adjust Knob, BF/FL Switch Knob, LED Center Wavelength 560nm, Fluorescent Filter Band G1	A5F.0912-G1
	UV1 LED Fluorescent Intermediate Modular, With Brightness Adjust Knob, BF/FL Switch Knob, LED Center Wavelength 365nm, Fluorescent Filter Band UV1	A5F.0912-UV1
Adapter	C-Mount 0.35x, Focus Adjustable, For 1/3 CCD	A55.0925-35
	C-Mount 0.5x, Focus Adjustable, For 1/2 CCD	A55.0925-05
	C-Mount 0.65x, Focus Adjustable, For 2/3 CCD	A55.0925-65
	C-Mount 1.0x, Focus Adjustable	A55.0925-10
	Photo Adapter with PK or MD mount, with 3.2x Photo Eyepiece	A55.0901-1
	Professional Photo C Mount, With Photo Eyepiece	A55.0910
Battery Box	A56.0913 Rechargeable Battery Box --Specially Designed For A16.0907-BL LED Fluorescence Microscope --Output DC6V, Large Capacity 5000mA, Rechargable, --Size 26*16*11cm	A56.0913
