High-Definition Imaging Classic, High-profile Biological Microscope With Beautiful Appearance, Excellent Performance And High-definition Imaging. Wide Range Of Applications It Is Suitable For Biological And Medical Fields, And Can Be Used For Health And Pathology Education And Professional Research, Clinical Experiments And Routine Medical Tests In Health Institutions, Laboratories, Research Institutes And Universities. |
| Special Designed Firmware Separately For Biological & Stereo Microscope, For Halogen & LED Light, Can Switch Easily In Menu To Get Best Image |
| Left/Right & Up/Down View Angle Free Adjustable In All Direction |
| 2 HDMI Input Port |
| 1.5M Line Control Included Avoid Multi Cameras's Interference, Remove Line Control Can Avoid Wrong Settings By Unauotherized People |
| Strong Metal Frame & High Quality Surface Finish |
| 12.5" Full HD 1080p LCD Screen With Better Color Correction |
| Real Color Reproduction, Clear & High Brightness Image Quality |
| Independent Developed Color Temeperature Control System, Upgrade For Life Time |

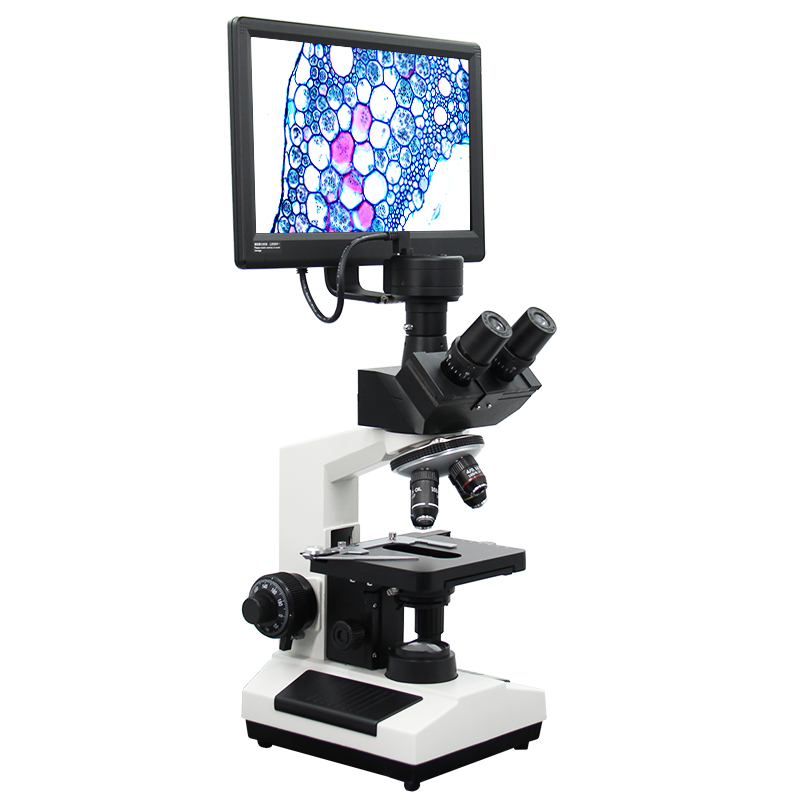

| A33.1018 LCD Digital Biological Microscope | |||||
| Magnification | 40x~1600x | ||||
| Head | Sliding Trinocular Black Head, 45° Inclined, 360° Rotatable, With Eyepiece Adapter & 1.0x C-Mount | ||||
| Eyepiece | Wide Field WF10x/18mm | ||||
| Wide Field WF16x/11mm | |||||
| Nosepiece | Quadruple Nosepiece | ||||
| Objective | Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil) | ||||
| Stage | Double Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm | ||||
| Focusing | Low Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, With Tension Adjustment, With Up Limit | ||||
| Condenser | N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder | ||||
| Filter | Blue, Yellow, Green | ||||
| Light Source | Plan-Concave Mirror | ||||
| Built-in Illumination 6V20W Halogen Lamp | |||||
| LCD Digital Camera Specifications | |||||
| Image Sensor | SONY CMOS IMX291Super Wide Dynamic CMOS Sensor | ||||
| Expose Mode | Rolling Shutter | ||||
| Maximum Resolution | 1920 x 1080 (2,073,600 pixels) | ||||
| Sensor Optical Format | 1/2.8'' (6.058mm(H) x 4.415mm(V)) | ||||
| Pixel Size | 2.9μm x 2.9μm | ||||
| Dynamic Range | 128dB | ||||
| SNR(Signal Noise Ratio) | 30dB | ||||
| Spectral Characteristics | 380~650nm | ||||
| Exposure Capability | Real-time Auto, Single Auto, Manual Adjustment | ||||
| White Balance | Real-time Auto, Single Auto, Manual Adjust RGB Seperately | ||||
| Display (preview)Resolution | HDMI：1920X1080P60 | ||||
| Record Format | Snapshot Picture Format：JPG Resolution：1920x1080 Record Video Format：MOV Resolution：1920X1080P30,1280x720P60 | ||||
| Record Route | TF Card(Maximum Support 128G，Support Hot Plug ) | ||||
| Camera Interface Parameter | |||||
| Camera Interface | C mount Thread（1＂×1/32） | ||||
| Image Output Interface | HDMI TYPE C(Mini HDMI) | ||||
| Monitor Parameters | |||||
| Size | 12.5” | ||||
| Type | a-Si TFT-LCD/IPS | ||||
| Resolution | 1920x1080 | ||||
| Color Display | 16.7M | ||||
| Brightness | 300 Nit | ||||
| Contrast | 800:1 | ||||
| Visible Angle | 170° Horizontal & Vertical | ||||
| Power Supply | Adapter: Input:AC100~240V/50~60Hz；Output:DC12V/5A/60W | ||||
| Monitor:USB-A-Output:DC5V/2A×3 | |||||
| Image Input Interface | HDMI1,HDMI2 | ||||
| A33.1018 LCD Digital Biological Microscope Optional Accessories | |||||
| Adapter | 0.45x C-mount With Reduction | ||||
| Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | ||||
| Dark Field Condenser, N.A. 1.25~1.35, Immersion | |||||
| Objective | Achromatic 100X with Cone Diaphram for Oil Dark Field Observation | ||||
| Plan 100X with Iris Diaphram for Oil Dark Field Observation | |||||
| Polarizing | Simple Polarizing Kit | ||||
| Phase Contrast | Sliding Phase Contrast Set --Sliding Phase Contrast Condenser --Achromatic Phase Contrast Objective 10x,40x --Centering Telescope --Green Filter | ||||
| Fluorescent | EPI-Fluorescent Kit --Power Supplier 220V/110V Interchangeable, Digital Display --100WHBO Ultra Hi-Voltage Spherical Mercury Lamp --Barrier To Resist Ultraviolet Light --Fluorescence Free Oil --Fluorescent Objective 10x,25x,40x,100x --Excitation Filter B/G --Excitation Filter U/V | ||||
