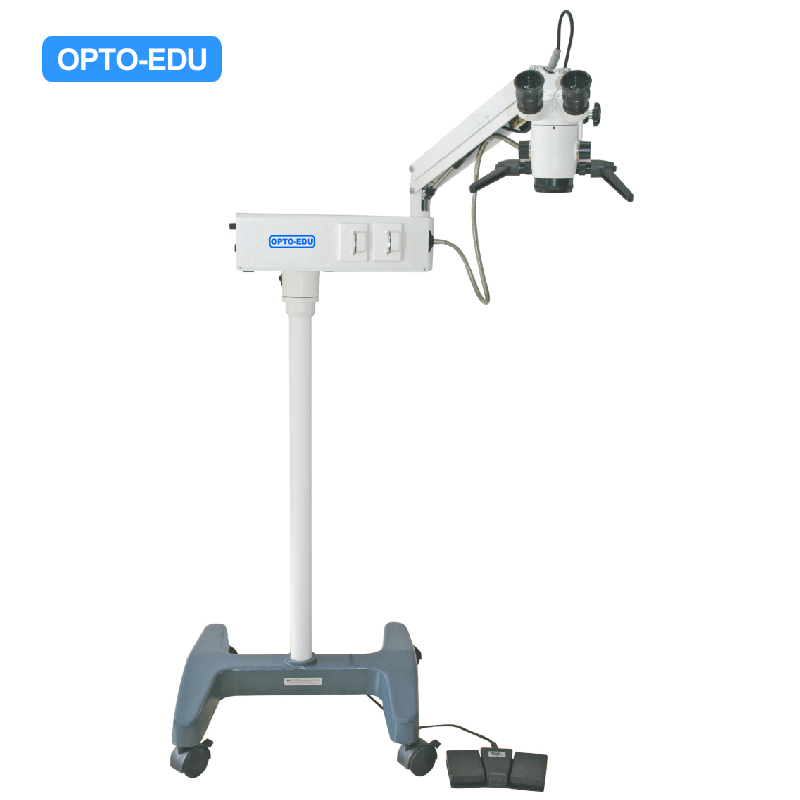

A41.3403 Operating Microscope, Ophthalmology, Cataract Surgery	200	300
Head	Binocular
Eyepiece Magnification	12.5×/18mm
Objective Lens	F=200mm	F=300mm
Working Distance	190mm	290mm
Magnification For Main Microscope	5.3x, 8x, 12x	3.5x, 5.4x, 8x
Diameter Of Field	37mm, 25mm, 16.7mm	57mm, 38mm, 25mm
Diopter Adjustment	±6D
Pupil Distance	50mm-80mm
Maximal Resolution	100 LP/mm
Fine Focusing Range	30mm
Illumination Source	12V/100W,Cold Reflection Halogen Lamp For Medical Use
Illumination Type	6°+0°Coaxial Illumination Of Cold Light Source
Coaxial Illumination	≥30000lx
Reaching Radius Of Arm	870mm
Adjustable Vertical Range	700mm～1100mm
Input Voltage	AC220V±22V/50Hz±1Hz， AC110V±11V/60Hz±1Hz
Power	120VA
Fuse	AC250V T1.25A ，AC1250V T2.5A
Electrical Safety Standard	Executive Standard:GB9706.1-2007,Type I
Packing Volume	0.2m3，1carton
Total Weight	41Kg



Picture	Cata. No.	Dental	ENT Ear, Nose, Throat	Ophthalmology	Orthopedics Hand Surgery Chest Surgery	Burn & Plastic	Andrology Gynecology Genitourinary	Animal Anatomy	Neurosurgery Brain Surgery
	A41.1901-A		●
	A41.1901-B	●		●			●
	A41.1901-C		●
	A41.1901-CZ		●
	A41.1901-D	●		●			●
	A41.1902-C		●
	A41.1902-D	●		●			●
	A41.1903	●	●	●			●
	A41.1940				●	●	●	●
	A41.1941				●	●	●	●
	A41.1942				●	●	●	●
	A41.1950		●						●
	A41.1951		●						●
	A41.1952		●						●
	A41.3400			●
	A41.3401			●
	A41.3402			●
	A41.3403			●
	A41.3404		●	●	●		●
	A41.3405			●	●



Picture	Cata. No.	Total Magnifica-tion	Head C-Mount	Body Magnifica-tion	Standard Objective	Optional Objective	Light Source	Stand Foot Switch Optional	Package	Application
	A41.1901-A	3x~12x	One Head 90°	Manual Step 0.6x,1x,1.6x	F=200mm F=300mm	F=400mm	Coaxial Light	5 Star Stand Cannot Use Beam Splitter	2 Ctns 0.23CBM 49Kgs	Ear, Nose,Throat
	A41.1901-B	3x~12x	One Head 45°	Manual Step 0.6x,1x,1.6x	F=200mm F=300mm	F=400mm	Coaxial Light	5 Star Stand Cannot Use Beam Splitter	2 Ctns 0.23CBM 49Kgs	Dental Gynecology Ophthalmology
	A41.1901-C	3x~12x	One Head 90°	Manual Step 0.6x,1x,1.6x	F=200mm F=300mm	F=400mm	Coaxial Light	Table Mount Cannot Use Beam Splitter	1 Ctn 0.11CBM 15Kgs	Ear, Nose,Throat
	A41.1901-CZ	3x~12x	One Head 90°	Manual Step 0.6x,1x,1.6x	F=200mm F=300mm	F=400mm	Coaxial Light	Pole Mount Cannot Use Beam Splitter	1 Ctn 0.11CBM 15Kgs	Ear, Nose,Throat
	A41.1901-D	3x~12x	One Head 45°	Manual Step 0.6x,1x,1.6x	F=200mm F=300mm	F=400mm	Coaxial Light	Table Mount Cannot Use Beam Splitter	1 Ctn 0.11CBM 15Kgs	Dental Gynecology Ophthalmology
	A41.1902-C	3x~12x	One Head 90° Beam Splitter C-Mount	Manual Step 0.6x,1x,1.6x	F=200mm F=300mm	F=400mm	Coaxial Light	5 Star Stand Optional: Teach Head SLR Camera Mount	2 Ctns 0.26CBM 59Kg	Ear, Nose,Throat
	A41.1902-D	3x~12x	One Head 45° Beam Splitter C-Mount	Manual Step 0.6x,1x,1.6x	F=200mm F=300mm	F=400mm	Coaxial Light	5 Star Stand Optional: Teach Head SLR Camera Mount	2 Ctns 0.26CBM 59Kg	Dental Gynecology Ophthalmology
	A41.1903	4.8x~16x	One Head 0-180°	Manual Step 0.6x,1x,1.6x	F=200mm F=250mm	F=300mm F=400mm	Coaxial Light	5 Star Stand Beam Splitter Teach Head SLR Camera Mount	2 Ctns 0.26CBM 59Kg	Ear, Nose,Throat Dental Gynecology Ophthalmology
	A41.1940	2x-30x	Dual Head	Motor Zoom 1:6	F=200mm	F=175mm F=250mm F=300mm F=350mm F=180~300mm	Coaxial Light	8 Direction Foot Switch X/Y/Z/Zoom Beam Splitter C-Mount	164Kgs	Orthopedics Hand & Chest Burn & Plastic Andrology Gynecology Genitourinary Animal Anatomy
	A41.1941	6x10x16x	Dual Head	Manual Step 0.6x,1x,1x,1.6x	F=200mm	F=175mm F=250mm F=300mm F=350mm F=180~300mm	Coaxial Light	2 Direction Foot Switch X/Y Beam Splitter C-Mount	117Kgs	Orthopedics Hand & Chest Burn & Plastic Andrology Gynecology Genitourinary Animal Anatomy
	A41.1942	6x10x16x	Dual Head	Manual Step 0.6x,1x,1x,1.6x	F=200mm	F=175mm F=250mm F=300mm F=350mm F=180~300mm	Coaxial Light	6 Direction Foot Switch X/Y/Z 3 Heads Beam Splitter C-Mount	107Kgs	Orthopedics Hand & Chest Burn & Plastic Andrology Gynecology Genitourinary Animal Anatomy
	A41.1950	3x~16x	Dual Head Beam Splitter	Motor Zoom 3x~16x	F=300mm	F=175mm F=200mm F=250mm F=350mm F=180~300mm	Coaxial Light	8 Direction Foot Switch X/Y/Z/Zoom C-Mount	164Kg	Neurosurgery Brain Surgery Ear, Nose,Throat
	A41.1951	2x~12.5x	One Head 90°	Manual Zoom 2x~12.5x	F=300mm	F=175mm F=200mm F=250mm F=350mm F=180~300mm	Coaxial Light	2 Direction Foot Switch X/Y Beam Splitter C-Mount	107Kgs	Neurosurgery Brain Surgery Ear, Nose,Throat
	A41.1952	2x~12.5x	Dual Head	Manual Zoom 2x~12.5x	F=300mm	F=175mm F=200mm F=250mm F=350mm F=180~300mm	Coaxial Light	2 Direction Foot Switch X/Y Beam Splitter C-Mount	107Kgs	Neurosurgery Brain Surgery Ear, Nose,Throat
	A41.3400	4-24x	One Head 30-90°	Motor Zoom 4x~24x	F=200mm	F=175mm F=250mm F=350mm	6°+0° Coaxial	8 Direction Foot Switch X/Y/Z/Zoom	2 Cartons 0.418CBM 87Kg	Ophthalmology
	A41.3401	4.6x~27x	Dual Head	Motor Zoom 4.6x~27x	F=200mm	F=175mm F=250mm F=350mm	6°+0° Coaxial 20° Oblique	8 Direction Foot Switch X/Y/Z/Zoom	5 Cartons 0.756CBM 215Kg	Ophthalmology
	A41.3402	4x-25x	Dual Head	Motor Zoom 4x-25x	F=200mm	F=175mm F=250mm F=350mm	6°+0° Coaxial 20° Oblique Slit Lamp	8 Direction Foot Switch X/Y/Z/Zoom	5 Cartons 0.786CBM 213Kg	Ophthalmology
	A41.3403	5.3x8x12x	One Head 45°	Manual Step 5.3x8x12x	F=200mm	F=175mm F=250mm F=350mm	6°+0° Coaxial	2 Direction Foot Switch X/Y	1 Carton 0.2CBM 41Kg	Ophthalmology
	A41.3404	6x10x16x	One Head 45°	Manual Step 6x10x16x	F=200mm	F=175mm F=250mm F=350mm	6°+0° Coaxial	Table Mount & Working Table	2 Cartons 0.283CBM 61Kg	Ophthalmology Ear, Nose,Throat Surgery Gynecology
	A41.3405	2.7x-25x,	Dual Head Teach Head Beam Splitter C-Mount	Manual Step 5 Levels	F=200mm F=250mm F=350mm	F=175mm	6°+0° Coaxial 25° Oblique Slit Lamp Red Reflect For Cataract	6 Direction Foot Switch X/Y/Z	5 Cartons 0.727CBM 210Kg	Ophthalmology Cataract Surgery Surgery
